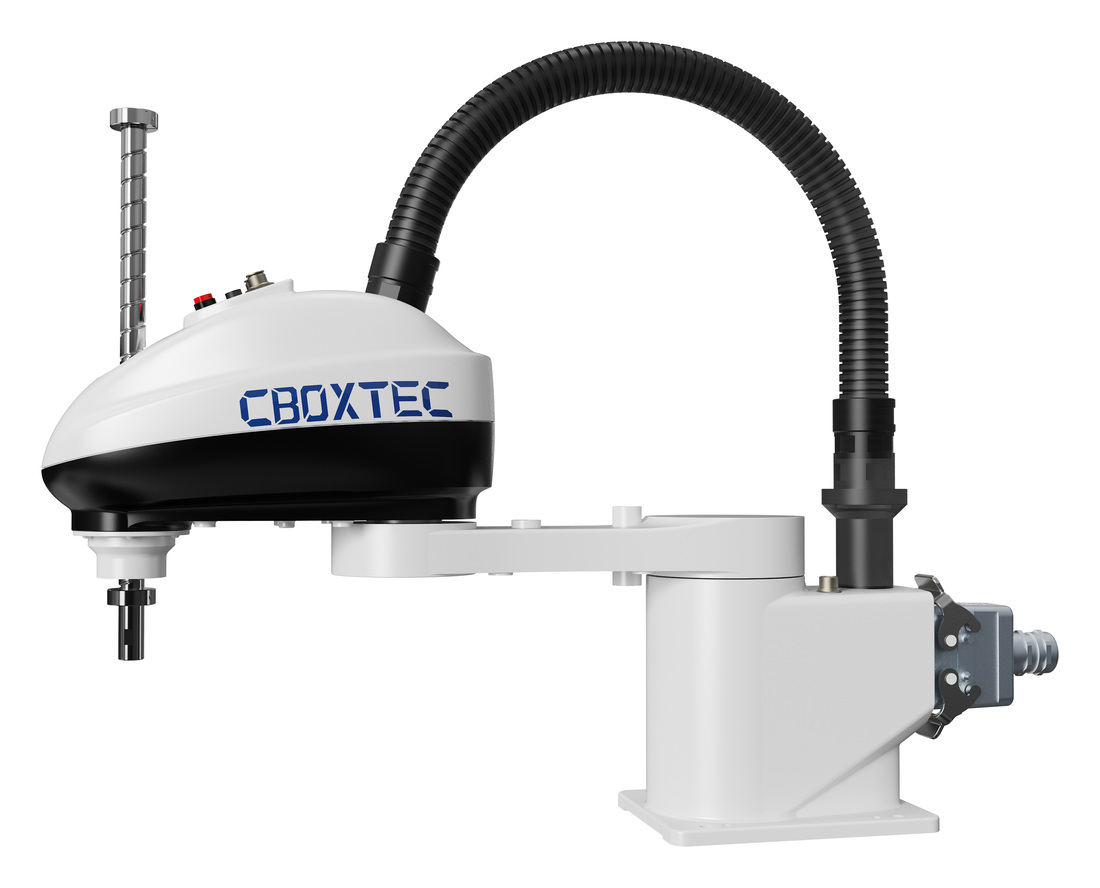

CTS003-400
- Axes
- 4
- Reach
- 400 mm
- Rated payload
- 1 kg
- Maximum payload
- 3 kg
- Repeatability · XY
- ±0.01 mm
More parameters
- Repeatability · Z
- ±0.01 mm
- Repeatability · rotation
- ±0.01°
- Z travel
- 170 mm
- Robot weight
- 13 kg
- Power consumption
- 0.7 kW
Robot arms
Choose a robot around tooling load, working envelope, placement requirements and controller interfaces.
Assess your project
Compare CBOXTEC models
Manufacturer catalogue values checked on 8 October 2026. Use these for initial selection; confirm the configuration, tooling load and application test conditions in your quotation.
SCARA robots · CTS

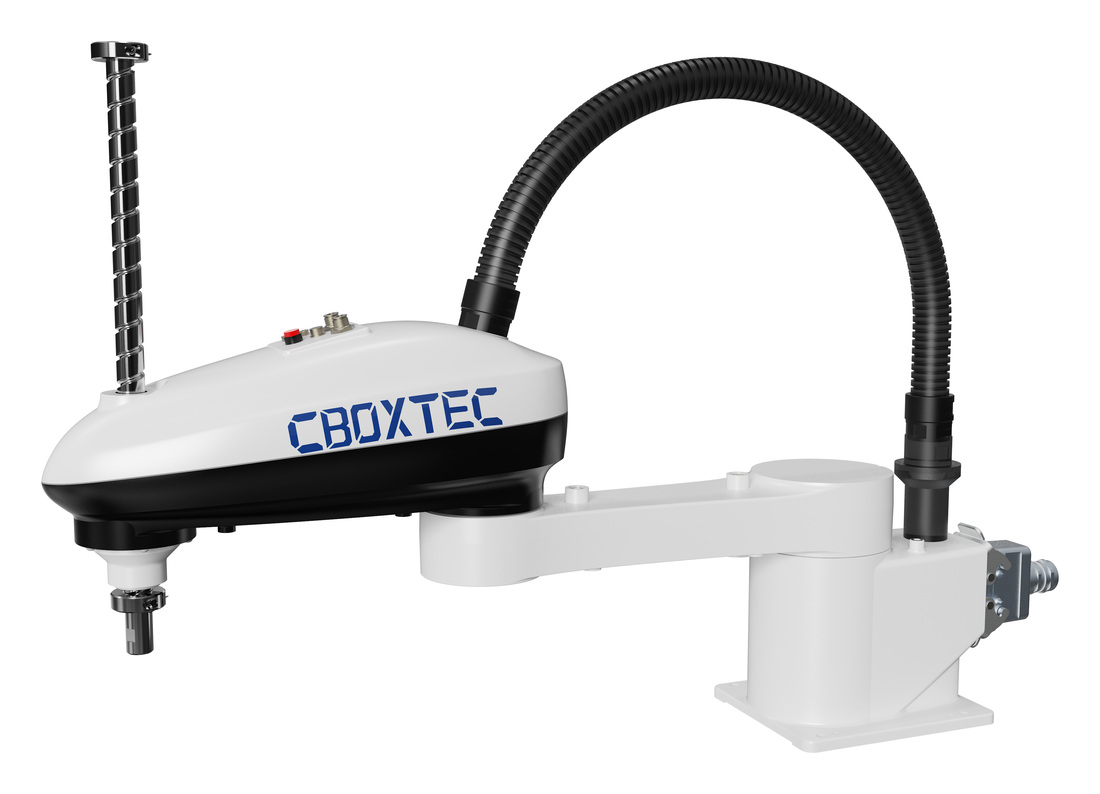

CTS006-600
- Axes
- 4
- Reach
- 600 mm
- Rated payload
- 3 kg
- Maximum payload
- 6 kg
- Repeatability · XY
- ±0.02 mm
More parameters
- Repeatability · Z
- ±0.01 mm
- Repeatability · rotation
- ±0.01°
- Z travel
- 220 mm
- Robot weight
- 17 kg
- Power consumption
- 0.8 kW

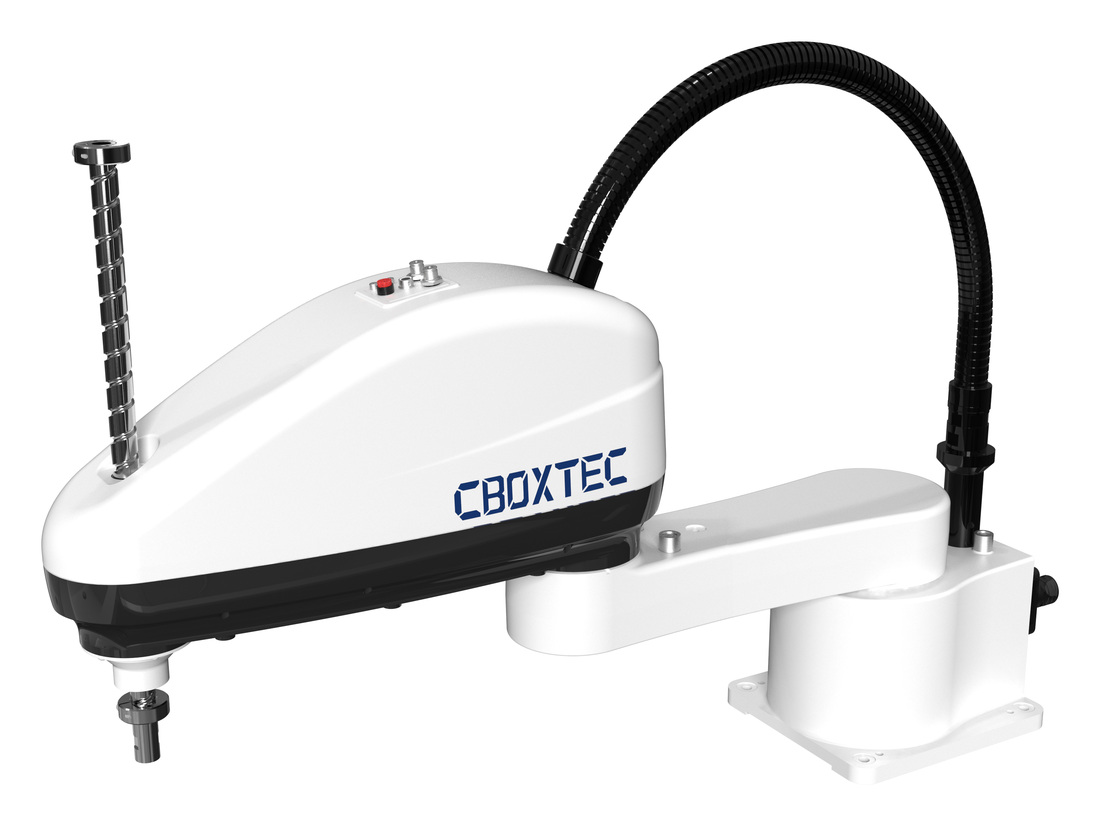

CTS010-700
- Axes
- 4
- Reach
- 700 mm
- Rated payload
- 5 kg
- Maximum payload
- 10 kg
- Repeatability · XY
- ±0.02 mm
More parameters
- Repeatability · Z
- ±0.01 mm
- Repeatability · rotation
- ±0.01°
- Z travel
- 200 mm
- Robot weight
- 28 kg
- Power consumption
- 1.55 kW
CTS010-800
- Axes
- 4
- Reach
- 800 mm
- Rated payload
- 5 kg
- Maximum payload
- 10 kg
- Repeatability · XY
- ±0.02 mm
More parameters
- Repeatability · Z
- ±0.01 mm
- Repeatability · rotation
- ±0.01°
- Z travel
- 200 mm
- Robot weight
- 28 kg
- Power consumption
- 1.55 kW

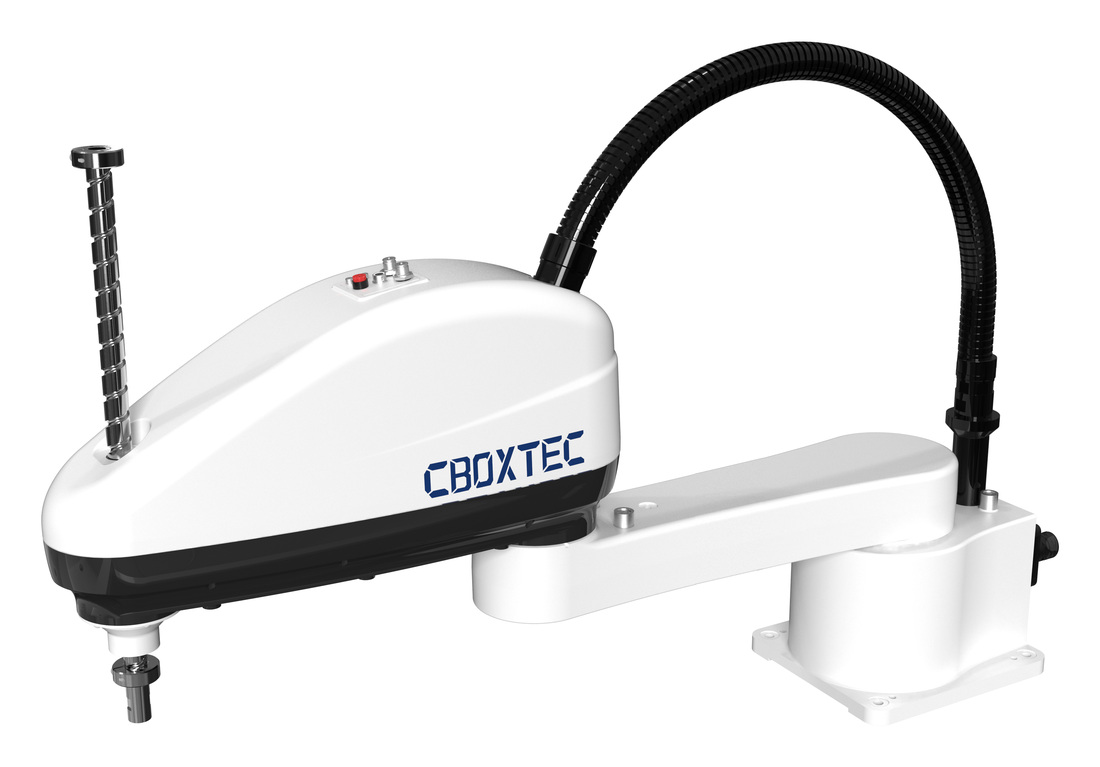

CTS010-900
- Axes
- 4
- Reach
- 900 mm
- Rated payload
- 5 kg
- Maximum payload
- 10 kg
- Repeatability · XY
- ±0.02 mm
More parameters
- Repeatability · Z
- ±0.01 mm
- Repeatability · rotation
- ±0.01°
- Z travel
- 200 mm
- Robot weight
- 28 kg
- Power consumption
- 1.55 kW
Collaborative robots · CTC

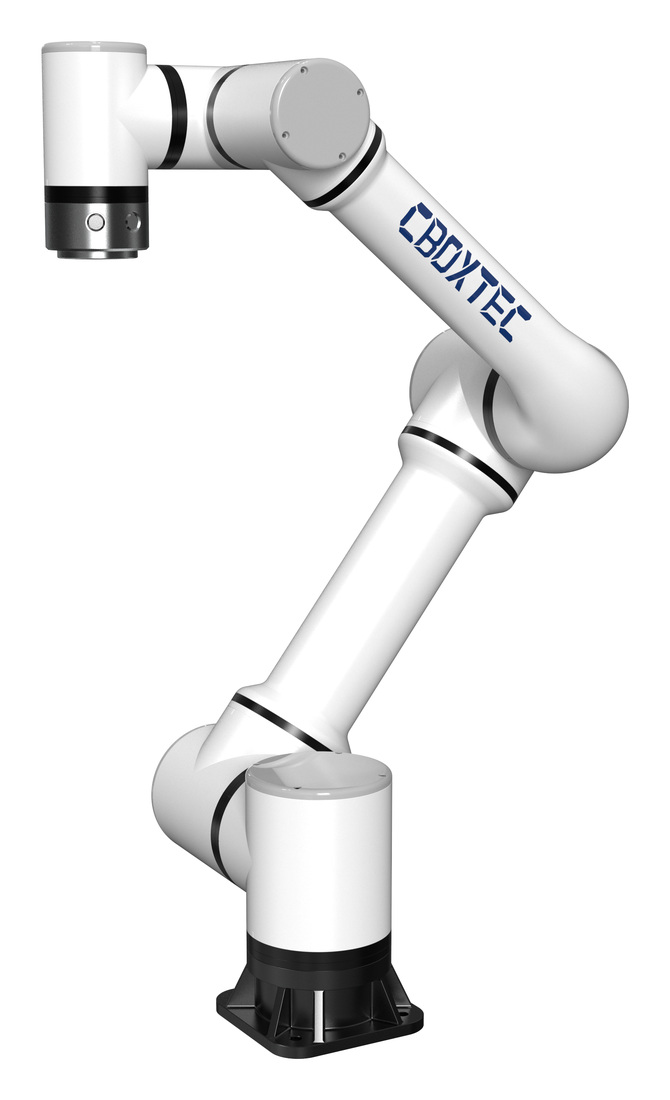

CTC005-910
- Axes
- 6
- Reach
- 912 mm
- Rated payload
- 5 kg
- Position repeatability
- ≤ ±0.05 mm
More parameters
- Robot weight
- 24 kg
- Power consumption
- 0.6 kW
- Protection rating
- IP54

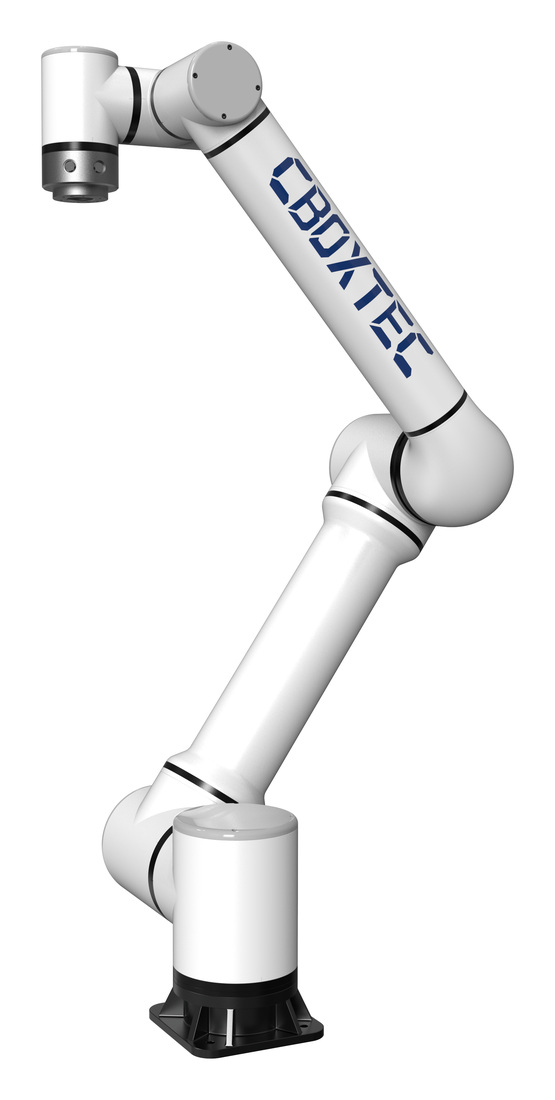

CTC012-1280
- Axes
- 6
- Reach
- 1283 mm
- Rated payload
- 12 kg
- Position repeatability
- ≤ ±0.1 mm
More parameters
- Robot weight
- 36 kg
- Power consumption
- 2.5 kW
- Protection rating
- IP54
Industrial robots · CTR

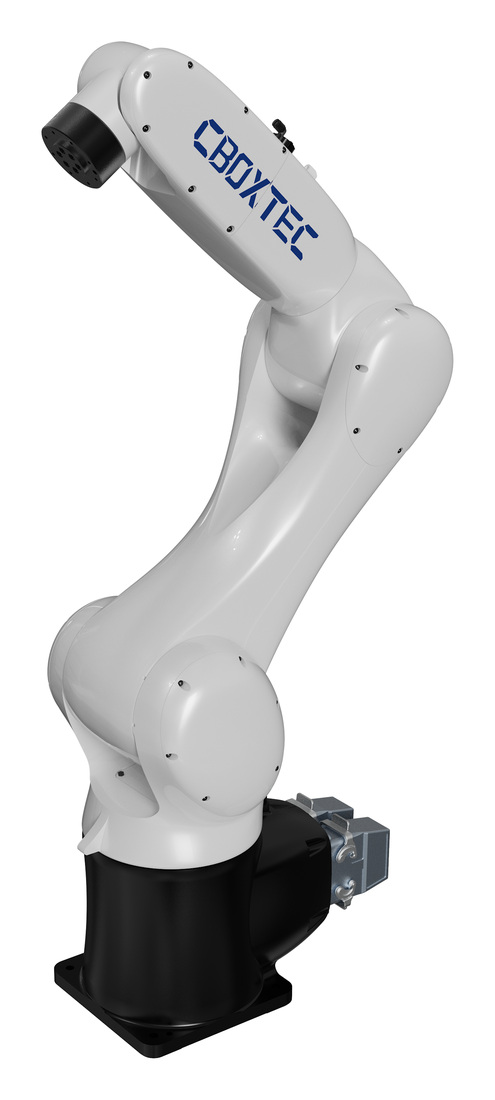

CTR008-900
- Axes
- 6
- Reach
- 915 mm
- Payload
- 8 kg
- Position repeatability
- ±0.03 mm
More parameters
- Robot weight
- 60 kg
- Power consumption
- 2.2 kW
- Protection rating
- IP54

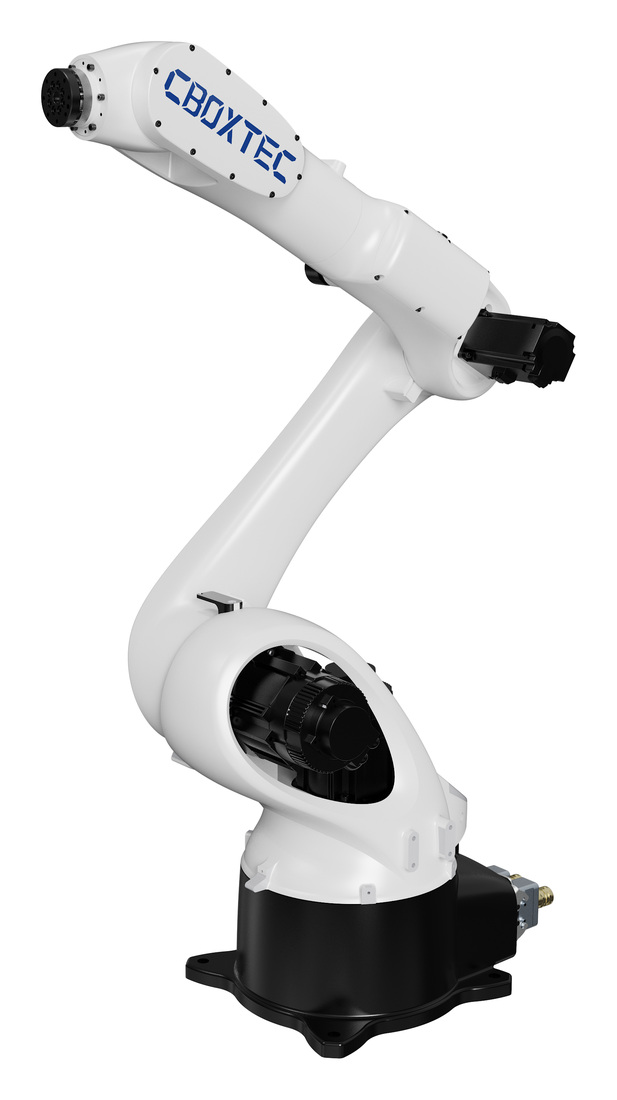

CTR012-1450
- Axes
- 6
- Reach
- 1450 mm
- Payload
- 12 kg
- Position repeatability
- ±0.05 mm
More parameters
- Robot weight
- 190 kg
- Power consumption
- 4.7 kW
- Protection rating
- IP44
Download comparison (CSV)
This comparison is compiled from the official product pages; it is not a manufacturer datasheet.
Local product files
Each model has a local PDF with its product image, key parameters and original English tables. Installation manuals and CAD files are not yet available here.
What to confirm for selection
Workpiece and tooling loads
Include the gripper, adapters and any carried components when reviewing load requirements.
Working envelope and motion
Share pickup and placement positions, orientation changes and space constraints.
Control and interfaces
Confirm controller details, I/O, communication and the relationship to peripheral equipment.
Model comparison and product documents
Catalogue sources checked:
How should I compare the robot arm parameters?
Compare the published specifications for each model above. For SCARA models, rated payload and maximum payload are separate values; also check reach and axis specifications before confirming a configuration.
Are the downloadable PDFs manufacturer-issued specifications?
These PDFs are prepared by this subsite from checked product information and include the corresponding model image. They are not manufacturer-issued specifications. Confirm the quoted configuration and required official documents with the supplier.
Related applications
The tray application shows a SCARA robot. Its exact model is unconfirmed. The catalogue on this page is a separate selection reference from the official product pages.
Loose chips to tray
A SCARA robot arranges loose chips into a tray, then passes them to the next process. The next process is not specified.
