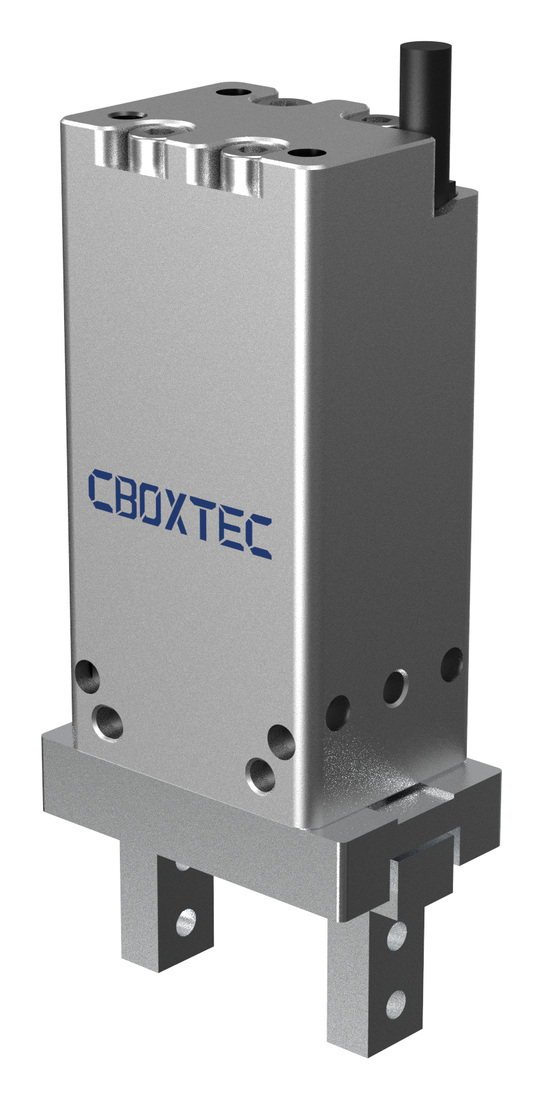

CT-EG-C06
- Stroke
- 6 mm
- Clamping force
- 10-50 N
- Opening / closing speed
- 20 mm/s
More parameters
- Weight without cables
- <0.16 kg
- Rated voltage
- 24 V±10%
- Peak current
- 0.2 A
- Control interface
- IO&ModBus RTU
- Protection rating
- IP40
Grippers
Match the gripping method and contact surfaces to the part and its required orientation.
Assess your project
Compare CBOXTEC models
Manufacturer catalogue values checked on 8 October 2026. Use these for initial selection; confirm the configuration, tooling load and application test conditions in your quotation.
Electric grippers · CT-EG
CT-EG-C12
- Stroke
- 12 mm
- Clamping force
- 10-50 N
- Opening / closing speed
- 20 mm/s
More parameters
- Weight without cables
- <0.2 kg
- Rated voltage
- 24 V±10%
- Peak current
- 0.2 A
- Control interface
- IO&ModBus RTU
- Protection rating
- IP40

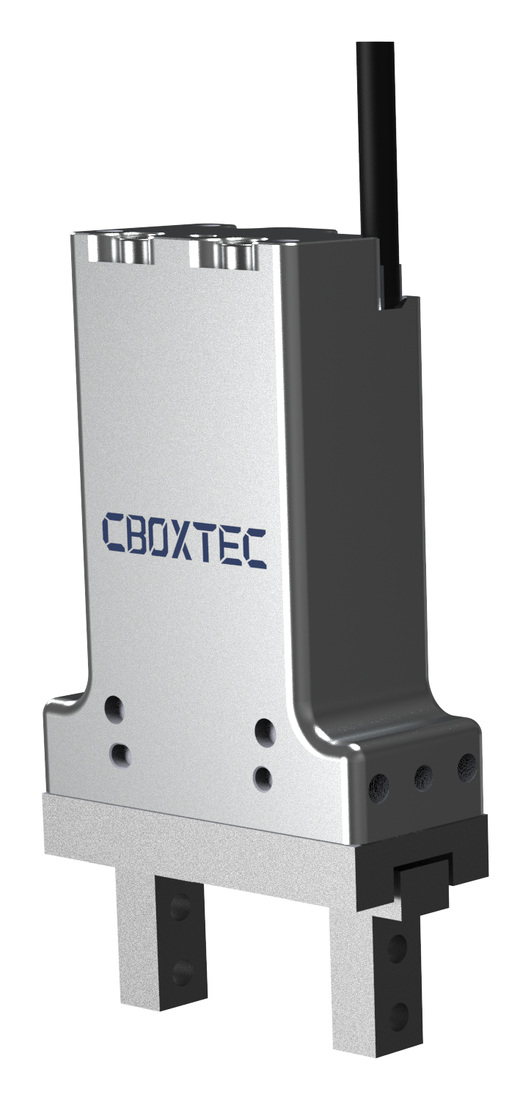

CT-EG-C22
- Stroke
- 22 mm
- Clamping force
- 20-100 N
- Opening / closing speed
- 70 mm/s
More parameters
- Weight without cables
- <0.7 kg
- Rated voltage
- 24 V±10%
- Peak current
- 0.5 A
- Control interface
- IO&ModBus RTU
- Protection rating
- IP40
Download comparison (CSV)
This comparison is compiled from the official product pages; it is not a manufacturer datasheet.
Local product files
Each model has a local PDF with its product image, key parameters and original English tables. Installation manuals and CAD files are not yet available here.
What to confirm for selection
Part characteristics
Provide dimensions, weight, center of gravity, rigidity and accessible contact surfaces.
Gripping method
Assess fingers, contact geometry or suction against the actual part and its required orientation.
Mounting and utilities
Review mounting, air or power, control signals and the expected interaction with the robot.
Model comparison and product documents
Catalogue sources checked:
Which electric gripper specifications can I compare?
The catalogue lists CT-EG-C06, CT-EG-C12 and CT-EG-C22 with stroke, gripping force and weight. Compare the values for the specific model, then confirm its suitability for the part, contact surfaces and equipment interface.
What do the local gripper PDFs contain?
Each local PDF includes the corresponding model image, a localized parameter summary and the original parameter table. It is a subsite-prepared product file, not a manufacturer-issued specification; confirmed unit corrections are identified in the document.
Related applications
The footage provides a view of actual end-effector use. It does not establish a named gripper model, rated force, certified capability or universal compatibility.
Loose chips to tray
A SCARA robot arranges loose chips into a tray, then passes them to the next process. The next process is not specified.
View case
Transfer around a press
Robot pick-and-place movements around press equipment. Part identity, operating parameters and the scope of machine integration require confirmation.
View caseTell us what your part needs to do.
Start with the essentials. Detailed drawings and sensitive information can be discussed later.
